CPQD20
Shangqi
Product Description

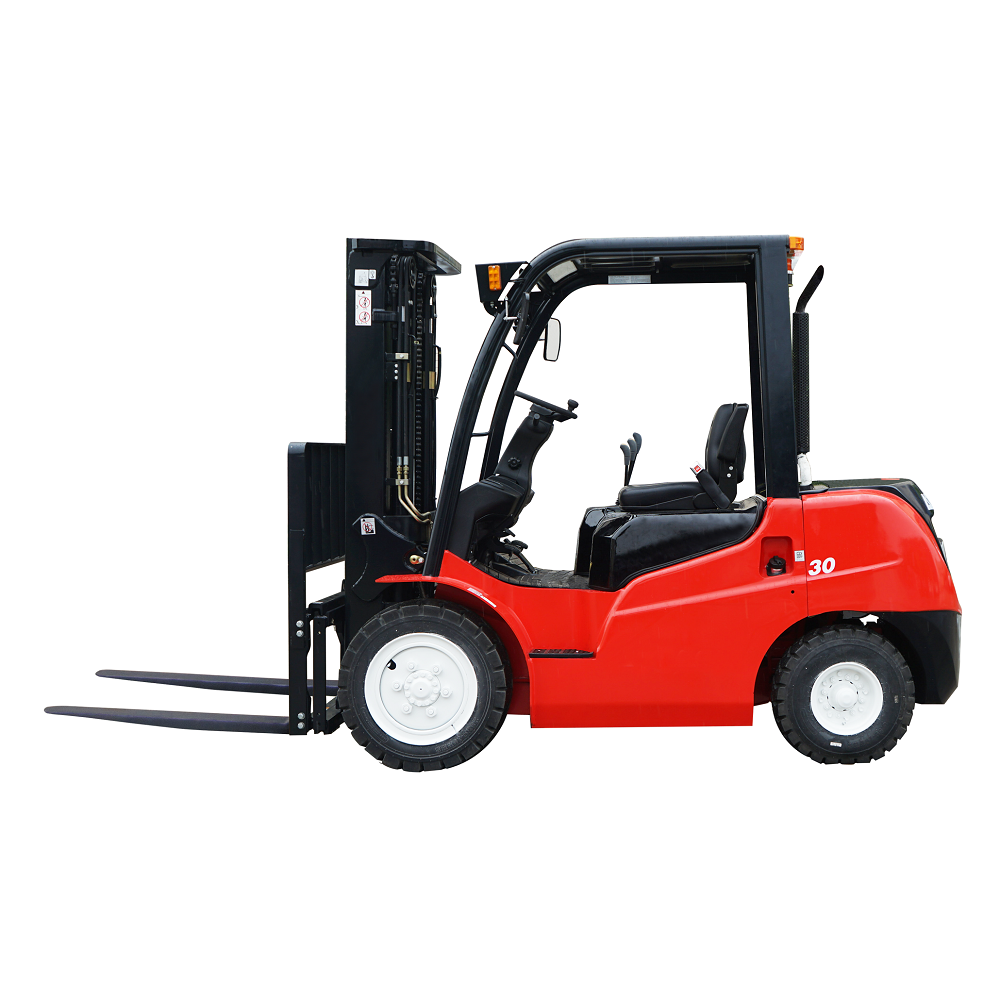

2~3.5 ton diesel forklift can provide strong driving force and sensitive operation experience. Completing with beautiful appearance, good quality and reasonable price, it is definitely your good choice for material handling job for both indoor and outdoor. It is widely used in plants, office buildings, libraries, hotels,restaurants, logistics and other material handling industry.
Product Characteristics

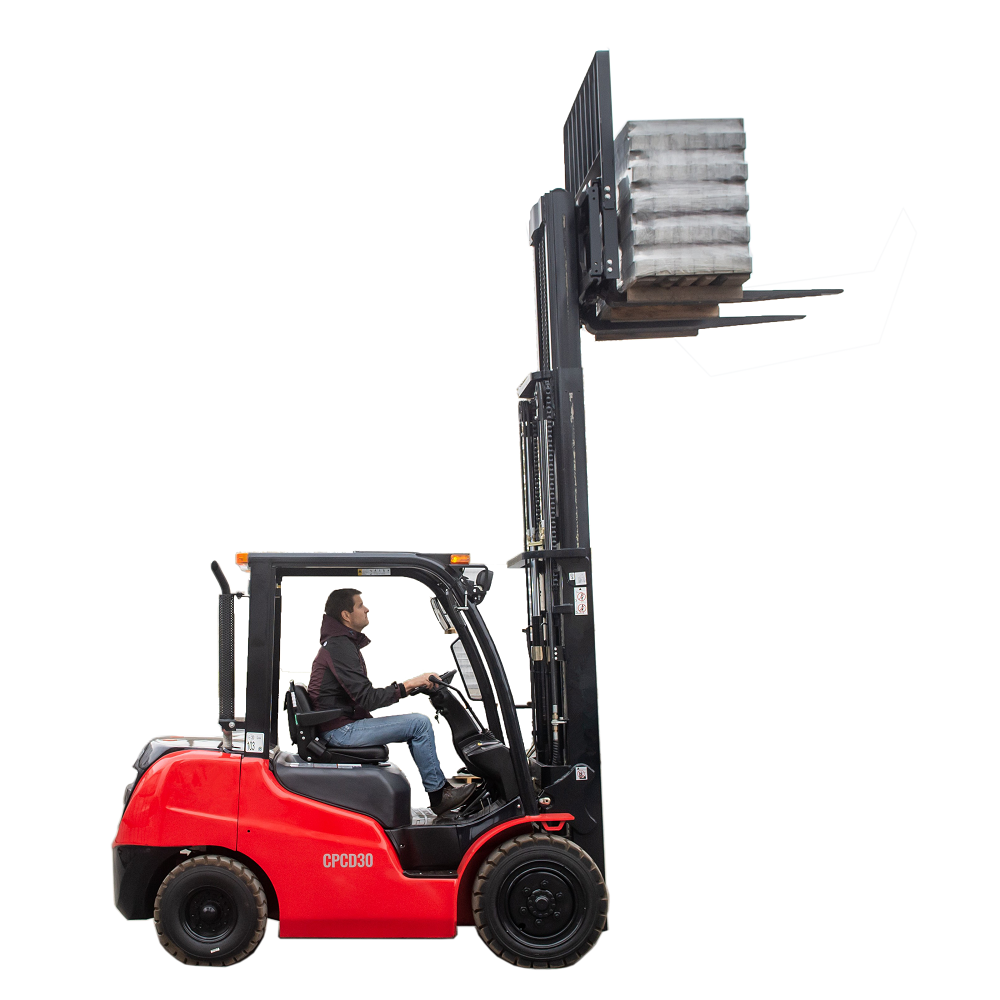

3 ton gasoline forklift truck with 3 stage 6000 mm full free mast
Product | Selling Point |
2 ton~3.5 ton diesel forklift | Streamlined design Safety and comfortable cab Optional engine and transmission Long service life solid tires Optional side shift device Automatic transmission |
Data Sheet
Model | CPCD20 | CPCD25 | CPCD30 | CPCD35 | |
Power type | Diesel/Gasoline/LPG | ||||
Rated Capacity | 2000kg | 2500kg | 3000kg | 3500kg | |
Load Centre | 500mm | 500mm | 500mm | 500mm | |
Lift Height | 3000mm~6000mm | ||||
Mast | Full free duplex or triplex mast | ||||
Fork Size (L×W×T) | 1070×120×40mm | 1070×120×45mm | 1070×125×45mm | 1070×130×45mm | |
Length to fork face | 2589mm | 2644mm | 2744mm | 2839mm | |
Overall Width | 1150mm | 1150mm | 1236mm | 1236mm | |
Overhead Guard Height | 2145mm | 2145mm | 2175mm | 2175mm | |
Min.turning Radius | 2220mm | 2290mm | 2400mm | 2490mm | |
Travel speed(full loaded/unloaded) | 17/19km/h | 17/19km/h | 18/19km/h | 18/19km/h | |
Lift speed | 470mm/sec | 470mm/sec | 430mm/sec | 400mm/sec | |
Max. gradeability | 20% | 20% | 20% | 15% | |
Wheelbase | 1650mm | 1650mm | 1700mm | 1750mm | |
Diesel Engine | Xinchang/ISUZU/Mitsubishi/Yanmar/Nissan/Xinchai | ||||
Free spare parts list for our distributor:
Item | Part No. | Description | |
1 | K30G00 700400 | Oil filter,inlet | Y0809 |
2 | K30G00 700300 | Oil filter,outlet | LX32-20 |
3 | K30G00 322000 | Air cleaner | K127260 |
4 | side lift cylinder servise kit | ||
5 | tilt cylinder servise kit | ||
7 | steering cylinder servise kit | ||
8 | K30G00 310100 | fuel tank filter | C0505 |
9 | tansmission filter | YDS30.814 | |
10 | oli filter | 490B-JX85100C-JW | |
11 | K30G00 800800 | Switch,brake lamp | |
13 | K30G00 800700 | Back buzzer | DJB-12B |
Company Profile
Jiangsu Shangqi Heavy Industry Technology Co. Ltd is a wholly-owned subsidiary of Jiangsu Shangqi Group. It was established in 2002 and is located in the economic development zone of Jiangsu city, enjoying convenient transportation and beautiful environment. Our company covers an area of 250000 square meters and has more than 500 employees, including over 100 employees for technical and quality control. We are specialized in the research, development, sale and service of wheel loaders, mini excavators, forklifts and related products. We have obtained ISO9001 certificate and Special Equipment Production license. Most of our products have got CE certificates. In addition, Our company has a number of invention patents and core technology, has the key equipment for mass production of products, to meet the needs of customers with high grade and high reliability products. Our multi-function wheel loader has occupied the largest sales volume in the domestic similar export products for many years and has been exported to more than 50 countries and regions in the world.
Certification
CE CETIFICATE
CE CERTIFICATE
ISO
FAQ
