Views: 0 Author: kieran zhou Publish Time: 2025-05-20 Origin: Site

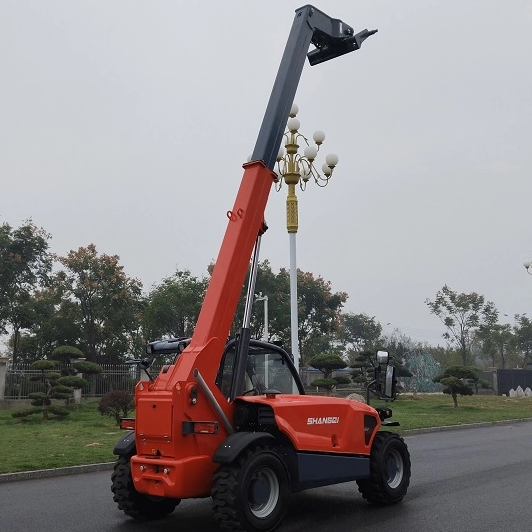

Jiangsu Shangqi TL875 telescopic forkliftis an efficient and multifunctional, and reliable material-handling machine designed for ports, logistics hubs, warehousing, and heavy-load operations. To ensure long-term performance and operational safety, this manual provides comprehensive guidelines for operators, fleet managers, and maintenance technicians.
· Equipped with an efficient hydraulic circuit for quick-response tool operation.
· Supports multiple attachments (forks, buckets, etc.) with smooth movement and overload protection.
· Smart torque adjustment prevents overloading, enhancing structural integrity and hydraulic system lifespan.
· Parametric geometric design minimizes wear, ensuring smooth extension/retraction and longer durability.
· Three selectable modes:
o Economy (fuel-saving)
o Standard (balanced performance)
o Power (maximum output for heavy loads)
· Premium suspension seat with adjustable backrest & seatbelt for fatigue-free operation.
· Maneuverable in tight spaces, ideal for confined job sites.
· Optimized power distribution for higher efficiency & lower fuel consumption.
✔ Hydraulic oil level (within marked range)
✔ Leaks (hoses, fittings, cylinders)
✔ Boom condition (no cracks/welding defects)
✔ Tire pressure & wear
✔ Attachment security (no loose pins/bolts)
✔ Warning lights (no system faults)
· Replace oil & filters every 500 hours (use OEM-recommended fluids).
· Flush contaminants to prevent valve blockages.
· Release pressure after shutdown (retract boom to neutral).
· Lubricate slide rails every 100 hours.
· Grease pivot pins regularly to prevent corrosion.
· Avoid max extension with heavy loads for prolonged periods.
· Clean controls & seating to maintain visibility/comfort.
· Inspect wiring/connectors every 200 hours (check for corrosion).
· Reset fault codes via diagnostic port if errors occur.
⚠ NEVER exceed rated capacity (risk of tipping/structural failure).
⚠ Keep bystanders clear of the working zone.
⚠ Start only with controls in neutral.
Task | Frequency |
Hydraulic oil change | Every 500 hours |
Filter replacement | Every 500 hours |
Boom rail lubrication | Every 100 hours |
Electrical system check | Every 200 hours |
Full safety inspection | Every 6 months |
· Recommended Mode: Standard
· Boom Position: 50–70% extension (optimal balance).
· Level attachments to prevent load shifts.
· Engage torque protection for shock absorption.
· Recommended Mode: High-Load
· Extend boom gradually—avoid full-length sudden movements.
· Stabilize on flat ground before lifting.
· Use cameras/spotters for blind-spot visibility.
· Recommended Mode: Power Boost
· Max load at full extension: 50–60% of rated capacity.
· Retract smoothly to avoid hydraulic spikes.
· Deploy outriggers/boards on soft terrain.
· Recommended Mode: Economy
· Clean boom rails to prevent jamming.
· Check pivot pins for wear.
· Engage 4WD in slippery conditions.
· Recommended Mode: Manual + Torque Protection
· Minimize boom length for stability.
· Smooth acceleration/braking to reduce inertia stress.
· Secure loads with straps—inspect hydraulics every 4 hours.
The TL875’s interactive dashboard monitors:
· Torque overload (anti-tip warning)
· Hydraulic overheating (cooling advisory)
· Boom angle limits (mechanical stress prevention)
· Power mismatch (mode adjustment prompt)
By following these operational strategies and preventive maintenance, theTL875 delivers peak performance in diverse applications. For custom attachments or technical support, contact Jiangsu Shangqi’s service team.
