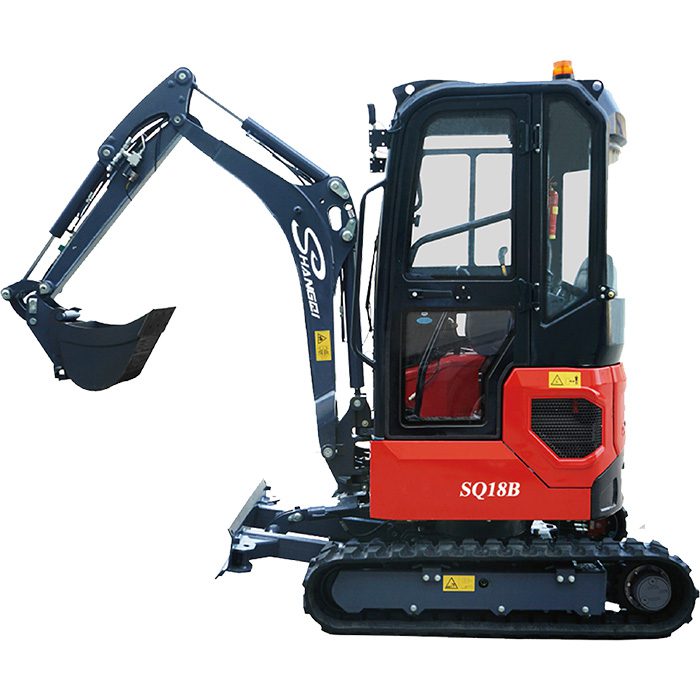

Description

SQ18B mini excavator utilizedimported international original high-quality engine, with strong power,low fuelconsumption, low noise, and high temperature resistance. It can easily cope with severe natural environmentchallenges such as extreme heat and extreme cold. Emission standard is one step ahead,reaching China IVstandard and Euro V standards.

It adopts a dual-pump hydraulic system and is equipped with a control valve with a wider control range to realizethe independent operation of the bucket and the boom to ensure efficient and smooth operation.The hydraulic power is concentrated on the front working device, which has the better digging performance thanthe standard models of the same level excavator.

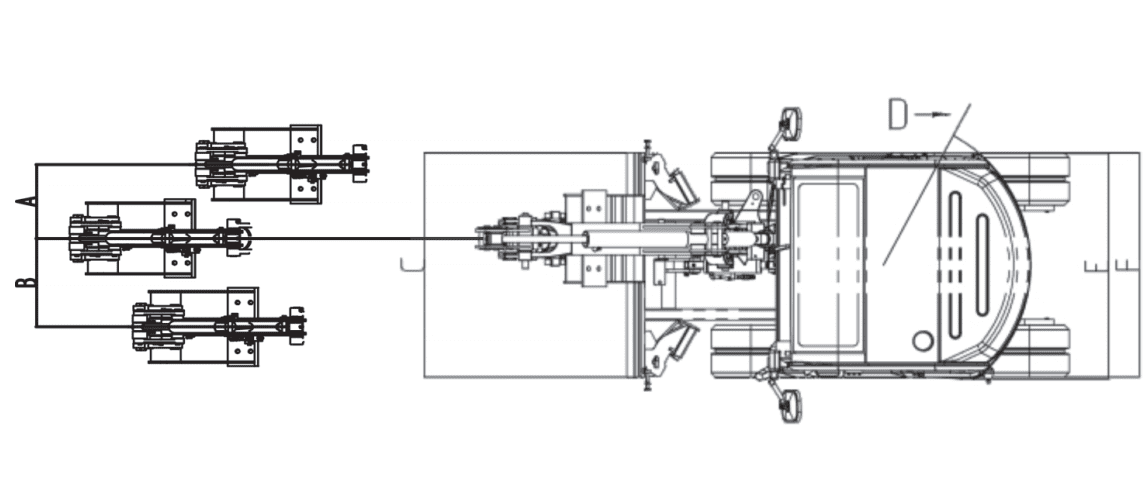

Tailless rotation:36o-degree barrier-free and flexible operation can be realized in a narrow space.Boom side swing: easily close to wall roots, side digging and other excavation operations.Telescopic crawler. The crawler of the chassis can be telescopedfreely, allowing free access to narrow working spaces.
The maximum width of the crawler after contraction is less than 1m, and it can workin narrow areas freely.

Reinforcedworking device, reasonable layout of the pipeline. Three layer structure: solid and durable side swing frame. Solid box structure bulldozer with extension block as standard.

The cab confoms to ROPS /TOPS intemationalsafety standard Standard elbow support makes it easier for longtime operation. Standard iron storage box, adjustable seat backdesign.
